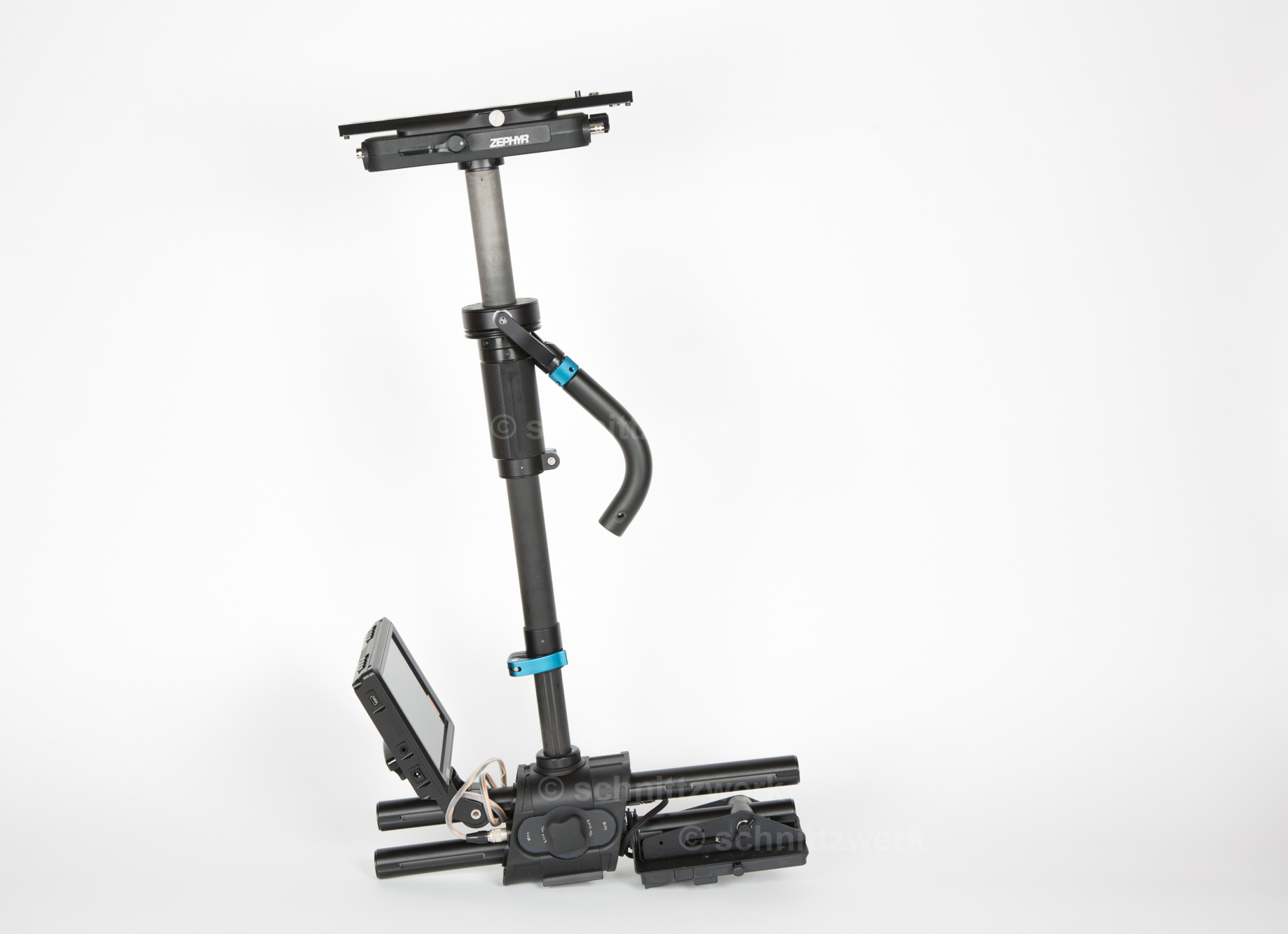

Steadicam Zephyr Sled (only)

- 7in HD monitor

- VL mount

- BNC/BNC cable # 078-4122-01

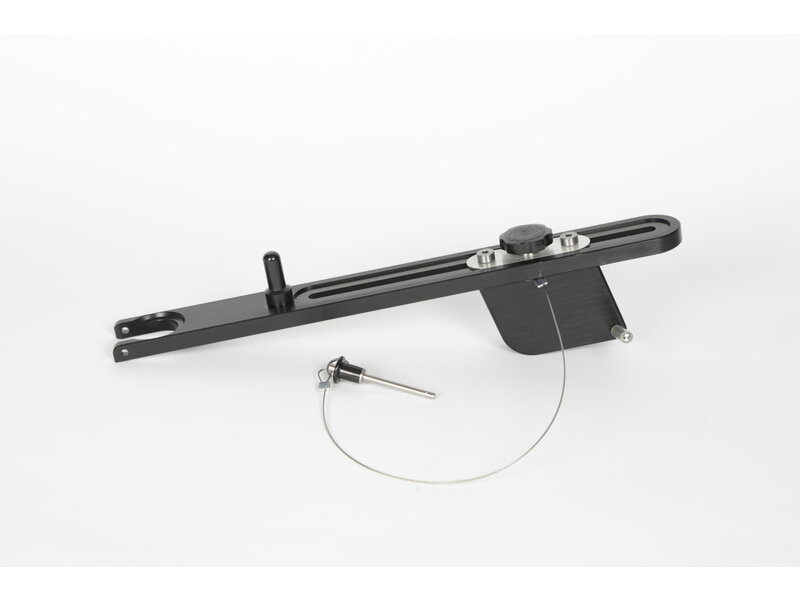

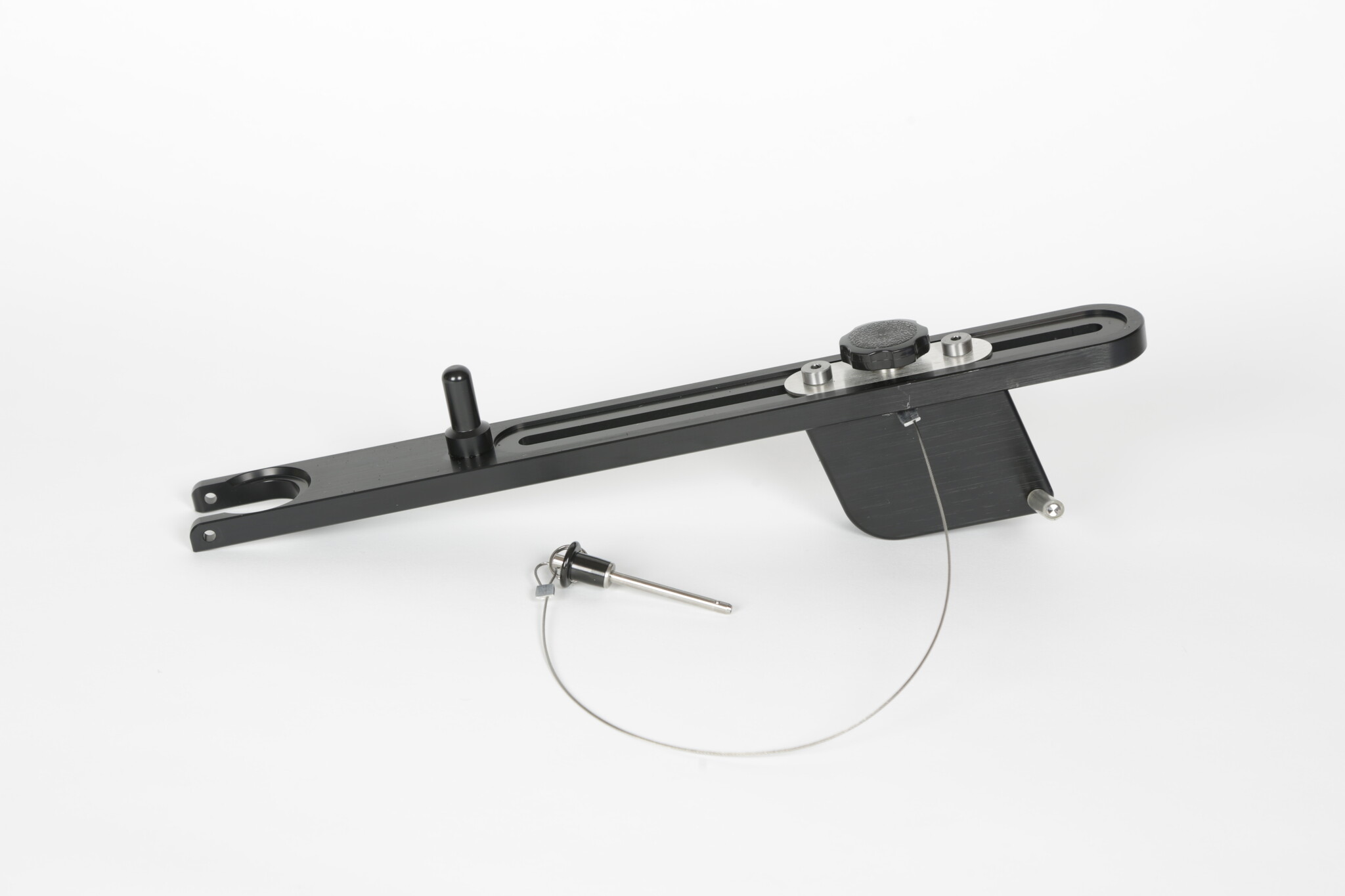

- Docking bracket

- 8x Weights

- Dovetail Plate

- Case/case -optional-

- - - - - Zephyr vest, arm and case on request - optionally available - - - -

allgemeine Information des Zephyr Systems

Steadicam Zephyr HD System with Zephyr Sled, A-30 Arm, Zephyr Vest, 7in HD Monitor, Zephyr Arm & Vest, Hard Case & Accessories - VL-Mount (ZEBXHMBVZZ). The Zephyr incorporates the same revolutionary features that previously won the coveted DV Professional Association’s “Best of Show” at NAB for Steadicam.
“Style, functionality,  flexibility and affordability all wrapped within the new Steadicam Zephyr. A combination of innovative features derived from our popular PILOT, FLYER, and Archer 2 Steadicam systems now allows an excel in the range of operating possibilities.
A new innovative approach to camera stabiliser design, the Steadicam Zephyr has a host of “future proof” features that allow it to be a versatile and an ever-evolving essential tool for camera stabilisation needs.
The new Zephyr vest design incorporates adjustable and pivoting shoulder buckles to assure a new comfort level for extended use.
New vest and pad covers are easily removed for cleaning or replacement offering extended durability.
The new tools-free patented Iso-Elastic stabiliser Zephyr Arm has...

Features

: Adjustable Iso-Elastic Arm

: Telescopic carbon fiber post

: Connector rich base and stage

: Dual axis vernier adjustable stage

: 9 to 23lbs (4 to 10.4kg) net camera weight

: Unparalleled Inertial control and dynamically adjustable base

Arm

: Frictionless, silky smooth Iso-Elastic Stabiliser Arm

: Huge 28" (71cm) double-section lifting range

: Tool-free, one-touch lift adjustment for each section

: New spring design with rounded arm sections

: 9 to 23lbs. (4 to 10.4kg) net camera weight

: Two-section arm with quick release

: New Post assembly permits different size post length

Sled

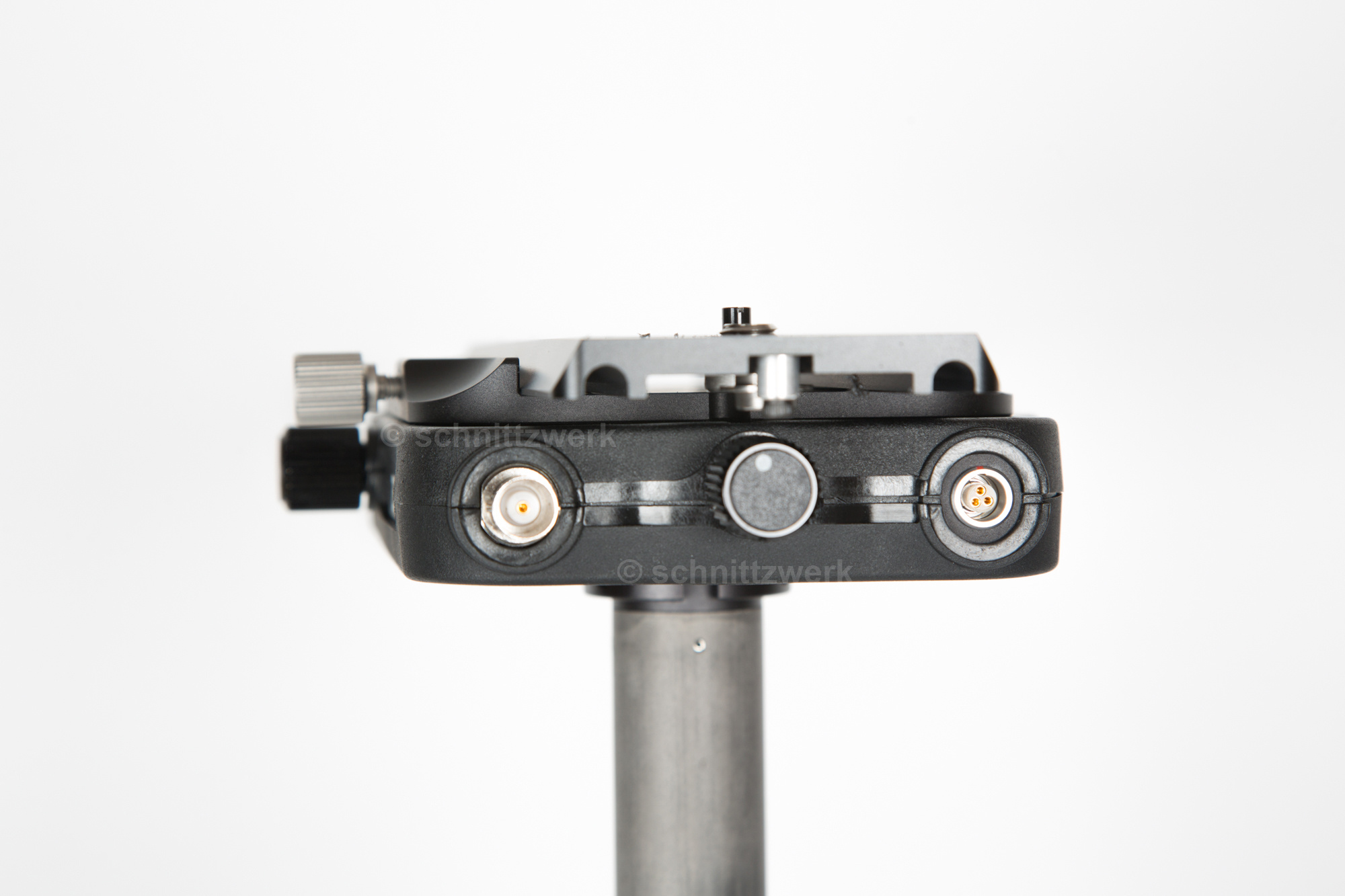

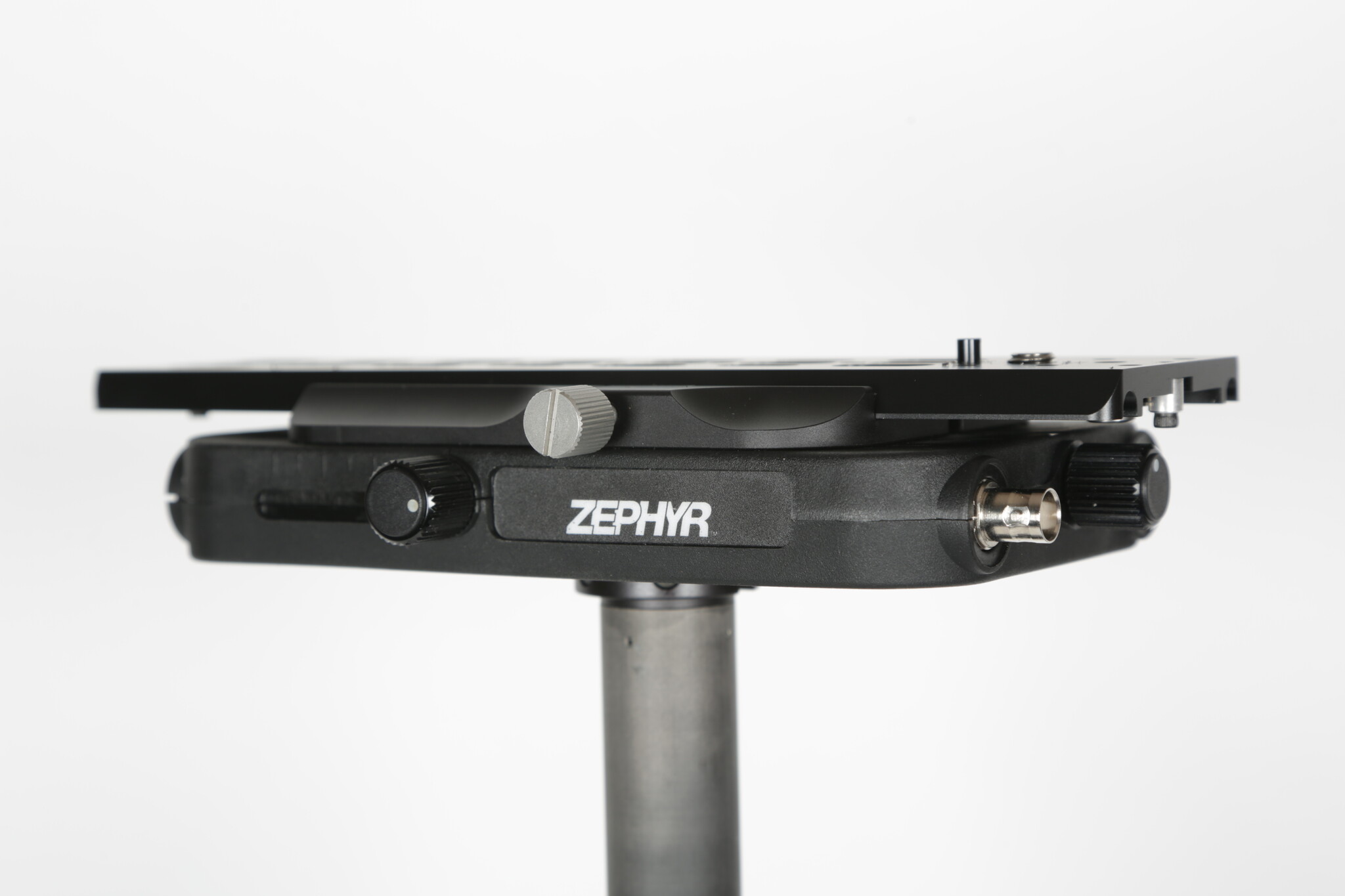

Stage

: Pre-loaded light-weight aluminium dovetail frame design for camera mounting stability.

: Dual axis backlash compensated vernier adjustable stage.

: Positive action camera plate clamp.

: Drop in camera plate with safety stops and coarse fore-aft position adjustability.

: Standard HD and composite BNC video connectors.

: 2 x standard 3-pin LEMO power connectors.

: 2 x standard connector expandability ports for future options or accessories.

: Universal mounting design for future options and accessories.

: Standard extended camera mounting dovetail plate

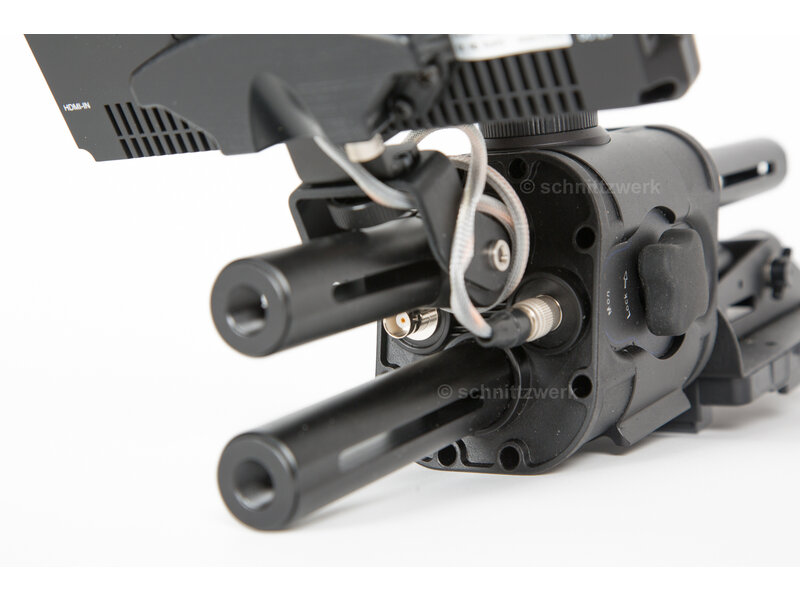

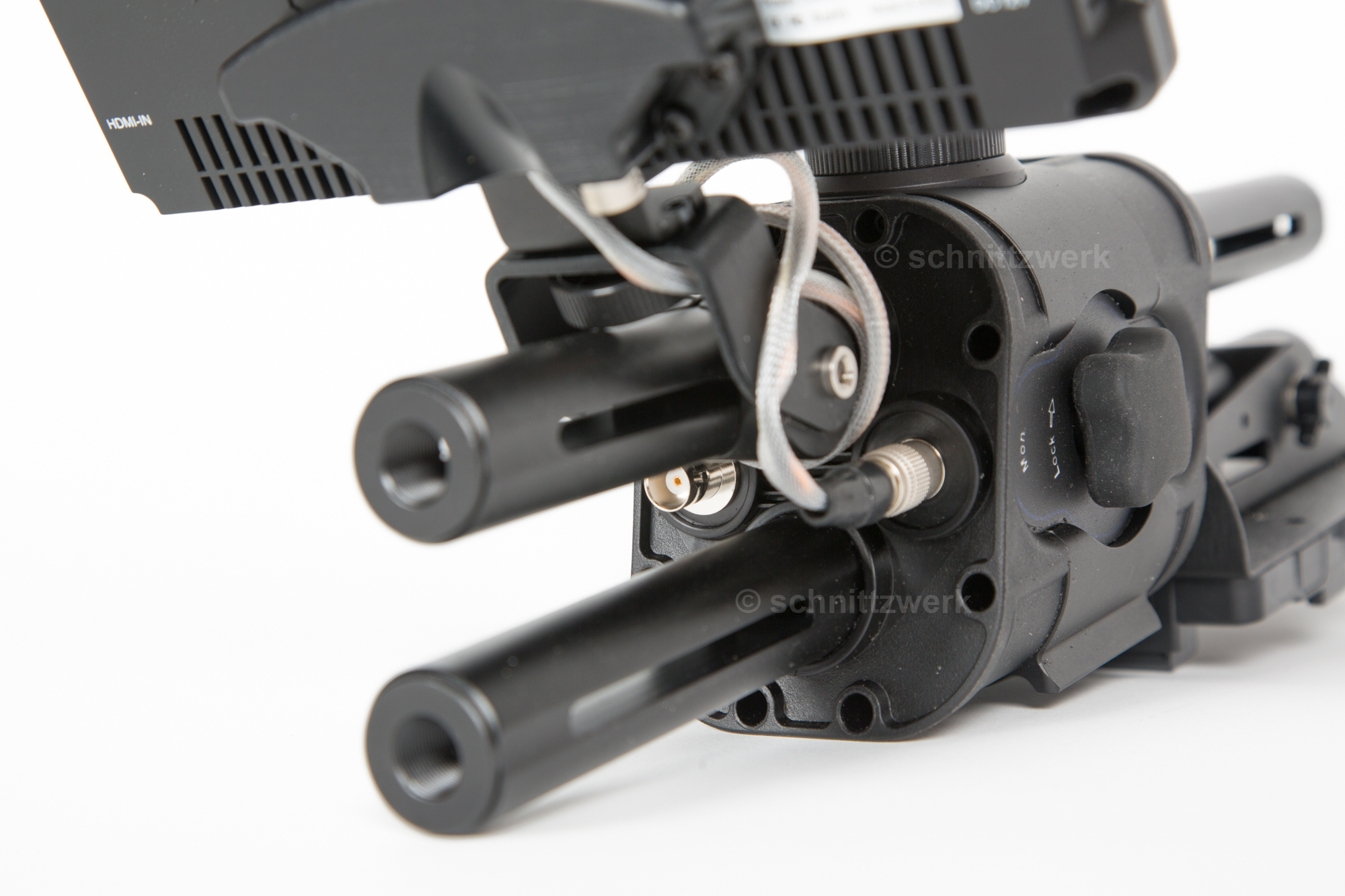

Sled Base

: Extendable rigid aluminium monitor and battery mounting rods easily removable for compact storage or transport.

: Single knob rod release for quick set-up’s.

: Independently adjustable battery and monitor mounts for dynamic balance adjustability.

: Tilting and rotationally indexed monitor mount.

: Inertial control and adjustability via standard Steadicam Merlin type balance weights.

: Balance control via standard ¼-20 mounting hole at the base of the sled and additional balance weights.

: Standard dovetail base for mounting of future options or accessories.

: Standard HD BNC video connector and interchangeable monitor harness.

: Standard 3-pin LEMO power connector for additional power output or input via optional 2nd battery mount.

: Optional 2nd battery mount for parallel 12V capability or 24V capability.

: Anton Bauer or V-lock battery compatible.

: Telescopic, index carbon fibre main post with internal safety line.

: No tools post clamp

: Standard 7” composite LCD or optional 7” HD/Composite LCD available.

Gimbal

: No tools adjustable knurled gimbal handle with ergonomic handle.

: Standard Steadicam TANGO compatibility.

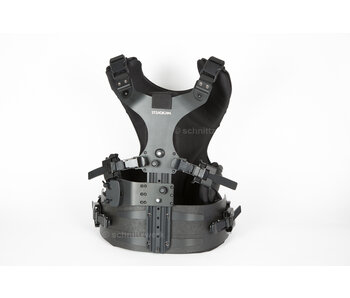

Vest

: New ergonomic lightweight design

: New removable vest and pad covers

: Proprietary arm/vest connector

: Stiff front spar

: Vertical adjustment of socket block for extended lens height, especially useful in low-mode

: Socket block  mounts left or right

: Two basic vest sizes to fit any operator
