x-xSPINE-xR3-Gfy-Frnt-xARM

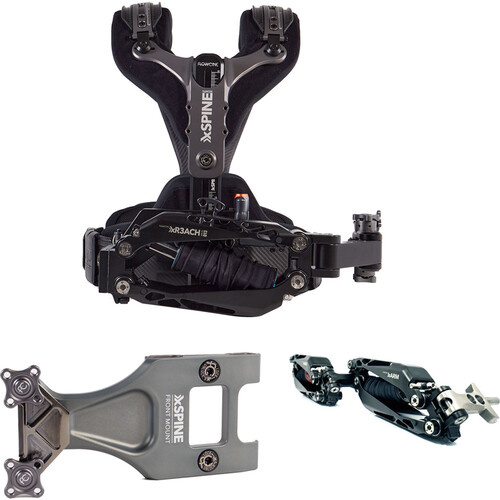

xSPINE + xR3ACH Goofy + xARM + Front Mount Bundle
Load Capacity: 37 to 64 lb / 16.8 to 29 kg
Weight: 9.9 lb / 4.5 kg
Vest weight: 8.6 lb / 3.9 kg
Material of Construction : Aluminum, Carbon Fiber, Stainless Steel
Key Features
- xSPINE Support Vest for All Body Sizes
- xR3ACH Heavy-Duty Stabilization Arm
- xARM Articulated Stabilization Arm
- xSPINE Front Mount
Create smooth movements and stabilize your footage with the xSPINE + xR3ACH Goofy + xARM + Front Mount Bundle from FLOWCINE. The bundle includes the xSPINE stabilizer vest, the xR3ACH stabilizer arm in goofy setup, the xARM double-section stabilization arm, and a front mount for the xSPINE.
The adjustable vest fits just about any body size and supports loads from 37 to 64 lb. The xR3ACH arm mounts on the right side ("goofy" setup) of the vest, and the front mount provides a universal mount for a variety of support arms such as the xARM, as well as the Tiffen and GPI Pro brands. The included xARM provides stability and mobility for your camera rig when performing handheld motion shots. Cases are included with the components to store and transport the bundle.
Capture professional, smooth camera movements by flying your rig with the goofy (tight-side) xSPINE Vest and xR3ACH Bundle from FLOWCINE. The camera's weight is distributed to the shooter's torso, and the spring cores of the articulating stabilization arm enable your rig to float through the set, creating an immersive experience for the audience as it follows your subject through the scene. This bundle comes configured in goofy setup, which features right-side mounting for left-handed operation.
The xSPINE fits all body types and allows you to support a stabilizer rig and save stress on the back and shoulders. The included xR3ACH arm provides a support arm for other stabilizers, and it also can be used as a stabilizer arm on its own. It includes three swappable spring cores to support loads from 37 to 64 lb, and there are small, medium, and large middle brackets included to finely adjust the mounting block position. A carry case with custom-cut foam is included to store the components.
Add a heavy-duty stabilization arm to your vest and gimbal rig with the xARM Double-Section Articulated Stabilization Arm from FLOWCINE to achieve smooth, professional motion shots. The xARM features a frictionless, noiseless, spring-loaded design that takes minimal force to adjust.
The xARM has multiple points of articulation in its two sections that can be adjusted with the included tools. Its full boom extension range is 30.7". The arm ships with three neoprene-lined, swappable spring cores that can support different load capacity ranges so you can balance your rig with the least amount of force: the blue core supports 37 to 49.5 lb, the orange core supports 44.5 to 56 lb, and the purple core supports 52 to 64 lb.
The arm's components are made of a combination of stainless steel, aluminum, titanium, and carbon fiber for a durable construction, and they also keep the arm lightweight at approximately 11 lb. Universal mounting socket blocks are included to mount onto various vests and rigs, and arm posts are also included to mount Tiffen and PRO standard gimbals.
All the tools required to assemble and adjust the arm are included, and a hard case with custom-cut foam is provided to store and transport your xARM.
Camera operators who would like to attach a stabilization arm to their xSPINE vest can do so via this xSPINE Front Mount from FLOWCINE, which extends a standard universal socket block to the shooter's left or right. This enables it to be connected to a variety of support arms, including models from GPI Pro, Tiffen, or the xARM from FLOWCINE.
The mount can slide down on the vest's vertical rails to create a lower center of gravity, clamped in a position usually blocked by the belt buckles of many competitors' stabilizer vest systems. With its adjustable height and ambidextrous design, the front mount can be customized to be used by multiple shooters as it is passed between the A, B, and C cameras.
In the Box
FLOWCINE xSPINE Vest and xR3ACH Bundle (Goofy)
FLOWCINE xSPINE Vest
xR3ACH Stabilizer Arm (Goofy)
Blue Spring Core (37 to 49.5 lb)
Orange Spring Core (44.5 to 56 lb)
Purple Spring Core (52 to 64 lb)
Small Middle Link Bracket
Medium Middle Link Bracket
Large Middle Link Bracket
4-Point Tool
Ratchet Wrench
Hex T-Handle
Bottle of Maintenance Fluid
Peli AIR 1555 Case with Custom Foam
FLOWCINE xARM Double-Section Articulated Stabilization Arm
Front Socket Block
Back Socket Block
3 x Arm Posts
2 x Blue Spring Cores
2 x Orange Spring Cores
2 x Purple Spring Cores
Wrench Kit
Peli AIR 1605 Case with Custom Foam
FLOWCINE xSPINE Front Mount
item: x-xSPINE-xR3-Gfy-Frnt-xARM
