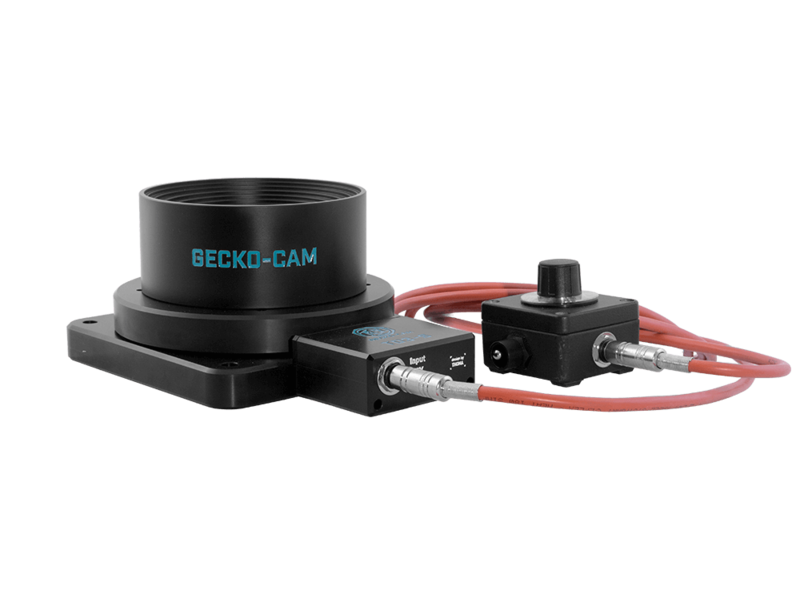

Gecko-Cam Turntable TD-3S complete set with cable and control unit
Turntable TD-3 complete set with cable and control unit ...
- Delivery time:
- 6-9 workings days
... easy handling, high load capacity up to 100 kg, infinitely rotatable in both directions. Expandable with platform. Gladly on request.
Lens technicians best friend!

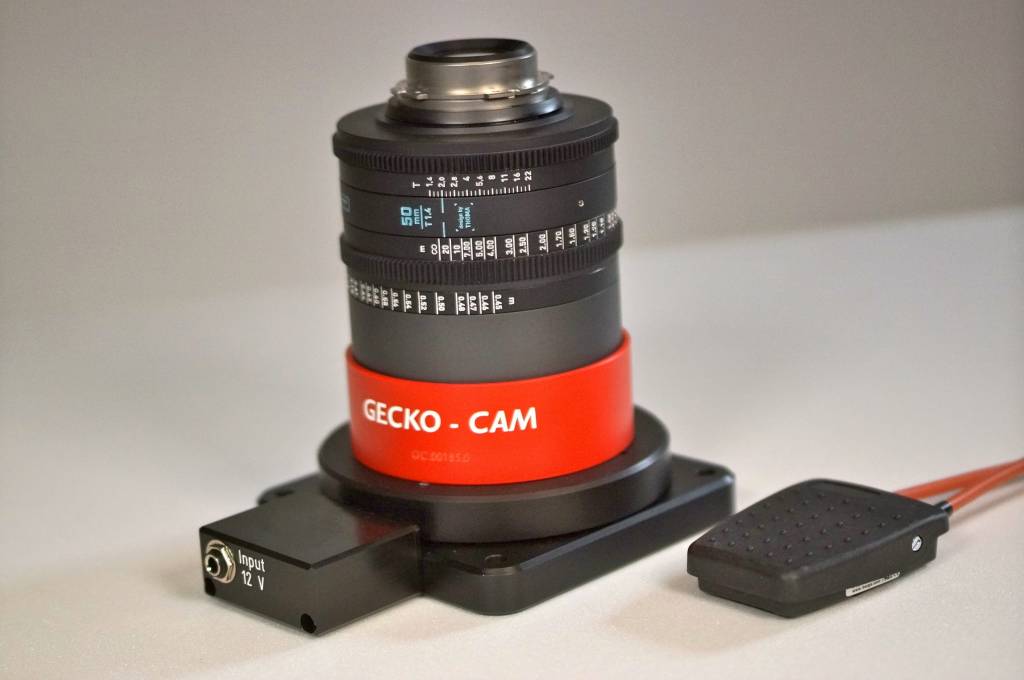

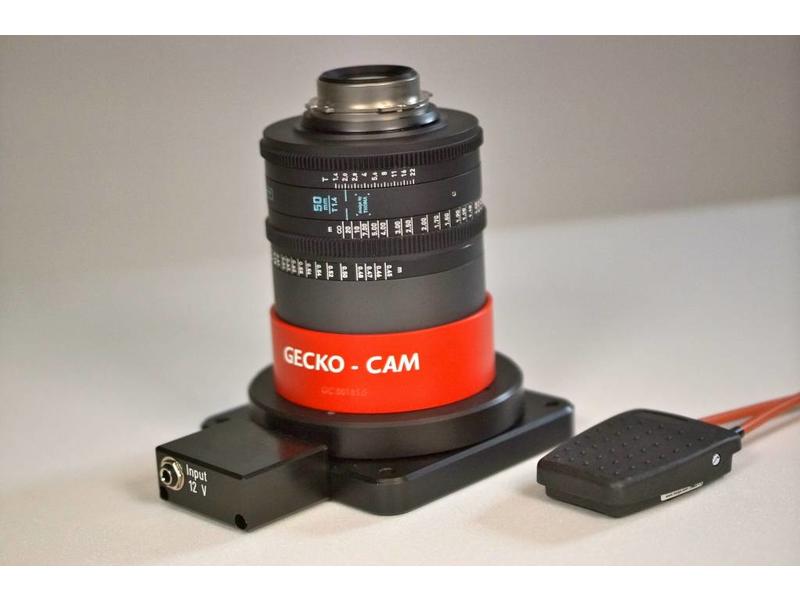

The faster TD3 version is used all day every day by our lens technicians. Added foot switch control keeps your hands free while working and the adapter for Gecko-Working Bases makes it the perfect tool for screwing in front buffles, cleaning glass and repainting glass edges more precise and fast.
Durable, uniform rotation, reliable. The basic version of the TD-Series was built for product presentation.
With it´s superior mechanics with adjustable speed it´s able to provide a uniform rotation at all speed settings. Used at Home shopping Television, Food shootings, Trade fairs it handles all different purposes you´re going to use it for.
ROTATING PLATE:
Dimensions: 15,4 cm x 4 cm x 15,4 cm
Weight: 2,4 kg
Material: anodized aluminum
- wheel and disc device for smooth and uniform movements
- slip friction clutch to protect the motor for overworking
- carries weights up to 100 kg
- precision-motor-gear-block with 12V/0,5Amax
- 4 tapholes with thread diameters M5
- Basis with 4 drill-holes for fastening (diameters: 8,3 mm)
SPEED-CONTROL-ELECTRONIC:
infinitely-variable speed adjustment
input voltage: 12 – 24 Volts
output voltage: 0 – 12 Volts, stabilized (DC-DC Converter)
input socket: XLR, 4 pol., (Sony norm)
output socket: 6,35 mm audio plug
CABLE:
standard cable 2 pol.
plug: two of 6,35 mm audio plug
length: 3 meters
- Foot switch
UNI-POWER-SUPPLY:
input voltage: 100 – 240 Volts
output voltage: 12 Volts, stabilized
output: max. 1,3 Amps
adapter for Europe and United states included
adapter for other countries optionally available
Turntable TD-3S complete set with cable and control unit, mobile use, can be fed with battery power pack (optional), easy handling, high load capacity up to 100 kg, infinitely rotatable in both directions. Expandable with platform. Gladly on request.
