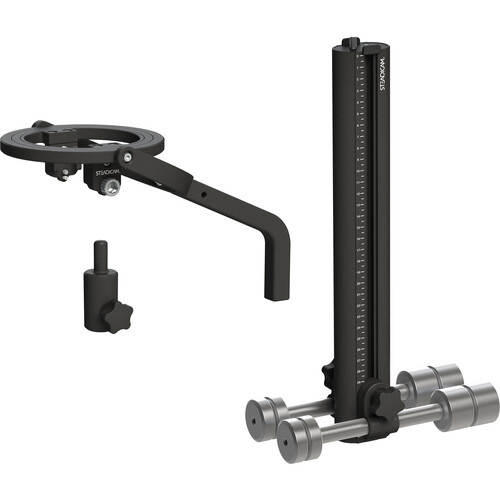

Steadimate-RS Gimbal Yoke, Base, and Balance Stud - SDMRS-GIM
The new Steadimate-RS greatly improves the functionality and user experience of operating the DJI Ronin RS2, RS3, and RS3 Pro motorized gimbal stabilizers.
Users will experience enhanced camera stabilization by combining the comfort and fluid movement of a Steadicam body worn stabilizer with the simple operation of the DJI handheld motorized gimbals.
The Steadimate-RS greatly reduces the load carried by the operator by utilizing a A15 or A30 (15lbs/6.8kg. or 30lbs/13.6kg weight limit respectively) spring arm to transfer the weight to the hips. Operators can now operate the DJI Ronin RS2, RS3, and RS3 Pro for extended periods with minimal fatigue while maintaining a full range of motion.
The mechanical gimbal yoke with integrated pan bearing of the Steadimate-RS delivers full pan capability and provides x & y-axis stabilization while the arm provides z-axis stabilization. Combined, this 3-axis manual stabilization enhances the capability of the motorized stabilizing system to minimize the image bouncing effect often found when walking with a handheld motorized stabilizer.
Features & Benefits:
• Secure slip-free dovetail mounting onto DJI Ronin RS2/RS3/RS3 Pro
• Ultra-smooth unique pan bearing design
• ¼-20” mounting holes on the gimbal handle for accessory mounting
• Unique vertical “T-Slot” channels for fast weight balance adjustment
• Industry standard 15mm diameter stainless steel weight rods with 60mm spacing
• Industry standard ½” diameter arm mounting post
• No-tool removal of gimbal from DJI stabilizer
• No tool adjustable balance weights and rods
• Made from corrosion resistant stainless-steel hardware and anodized aluminum components
• Stainless steel 1/2lb and 1/4lb balance weights with ¼-20 male and female threads
What’s in the Box:
SDMRS-GIM - Steadicam Steadimate RS Gimbal Only
• STEADIMATE-RS Gimbal Attachment
• Aluminum Post Extension
• (2) Aluminum Rod Clamps
• (2) 15mm Stainless Steel Weighted Rods
• (4) 1/2 lb. (0.22 kg) Stainless Steel Balance Weights
• (4) 1/4 lb. (.011 kg) Stainless Steel Balance Weights
• Balance Stud
• 3mm Allen Wrench
• 3/16” Allen Wrench
• User Manual
Packaging:
• UPC Code: 884613042295
• Packaged Dimensions: 10.83” x 15.75” x 2.36” (27.5 x 40 x 6cm)
• Packaged Weight: 8 lbs. (3.63 kg)
SDMRS-A15VK - Steadicam Steadimate RS Gimbal with A15 Arm & Vest (Max Camera Payload 2kg)
• STEADIMATE-RS Gimbal
• A-15 Arm
• Aero Vest
Packaging:
• UPC Code: 884613042301
• Packaged Dimensions: 21” x 15” x15” (53.3 x 38 x 38cm)
• Packaged Weight: 20 lbs. (9.07 kg)
SDMRS-A30VK - Steadicam Steadimate RS Gimbal with A15 Arm & Vest
• STEADIMATE-RS Gimbal
• A-30 Arm
• Zephyr Vest
Packaging:
• UPC Code: 884613042318
• Packaged Dimensions: 30” x 24” x 10” (76.2 x 61 x 25.4cm)
• Packaged Weight: 31 lbs. (14.06 kg)
