attach your Freefly MoVI or DJI Ronin 2 to your GLINK setup

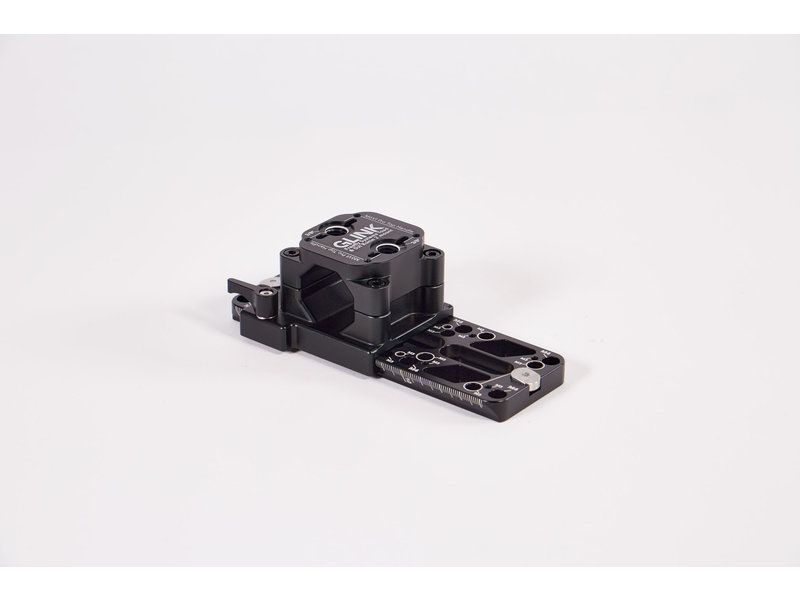

The GLINK MoVI R2 Mount is made to allow you to fine tune the balance around tilt on your gimbal unit. The mount comes with a GLINK dovetail that allows you to mount either a Freefly systems male “toad in the hole” (TITH) or a DJI Ronin 2 mounting base. The top clamp unit on the MoVI R2 Mount allows the user to connect additional accessories such as monitor or top handle.
MOUNTING OPTIONS
The GLINK MoVI R2 Mount is mounted with 4xM4 screws centered on the GLINK CF Ring Top frame. The dovetail allows mounting with either 4xM3 screws, or 4xM4 depending on mount (screws are included). The user can choose to mount the corresponding part either centered at the dovetail or at either end (makes it easier if the user has a huge offset in forward/aft balance on the gimbal unit itself). The top clamp unit has 2×3/8”-16 UNC threads with anti-rotational pin grooves as well as 4xM3 thread pattern to allow MoVI Classic top handle to be mounted.
ADJUSTMENTS
The GLINK MoVI R2 Mount can be adjusted side to side on top of the GLINK CF Ring Top frame. The unit can be mounted reversed as well for special types of shots (facing outwards).
INCLUDED IN THE BOX
- 1 pcs GLINK TITH/R2 bridge plate mount
- 1 pcs GLINK TITH/R2 top clamp mount
- 1 pcs GLINK TITH/R2 dovetail
- 4 pcs M4x16 Socket head cap screws
- 4 pcs M4x20 Socket head cap screws
- 4 pcs M3x12 Socket head cap screws
- 4 pcs M3x10 Socket head cap screws
item g-TITH-R2
