IDX P-Vmicro V-Mount battery plate 2 x D-Tap O/P ...

Small V-Mount battery plate with two D-Tap outputs and a USB-C output for V-Mount and V-micro batteries.

Characteristics:

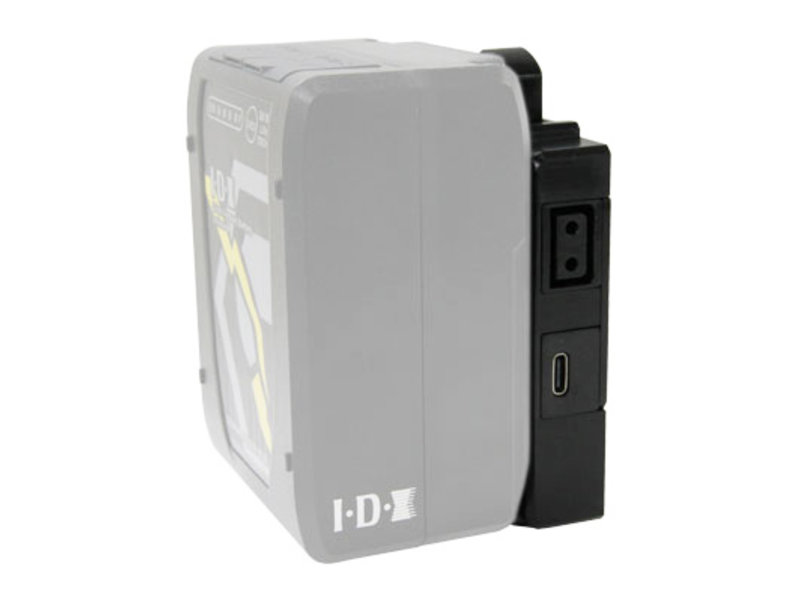

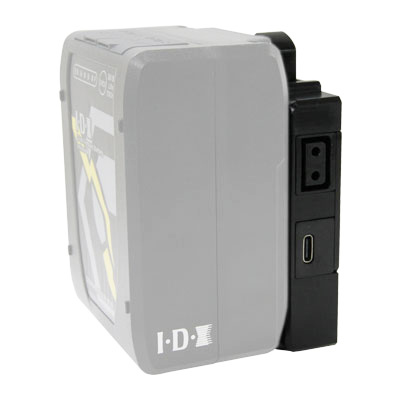

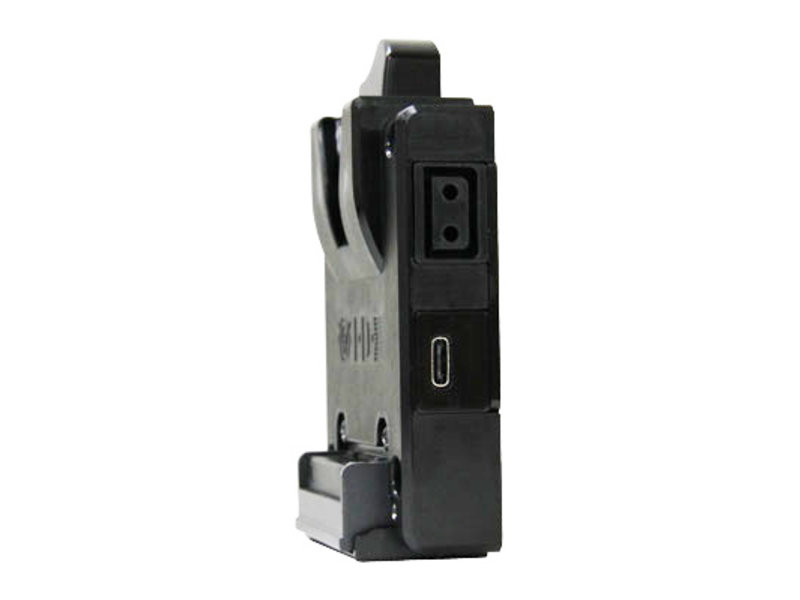

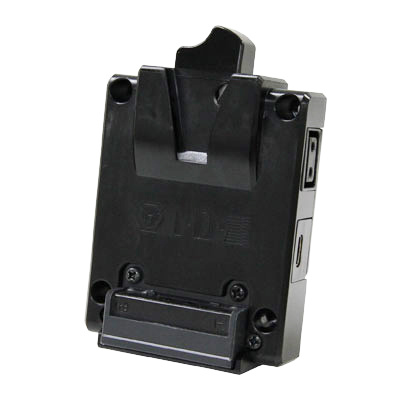

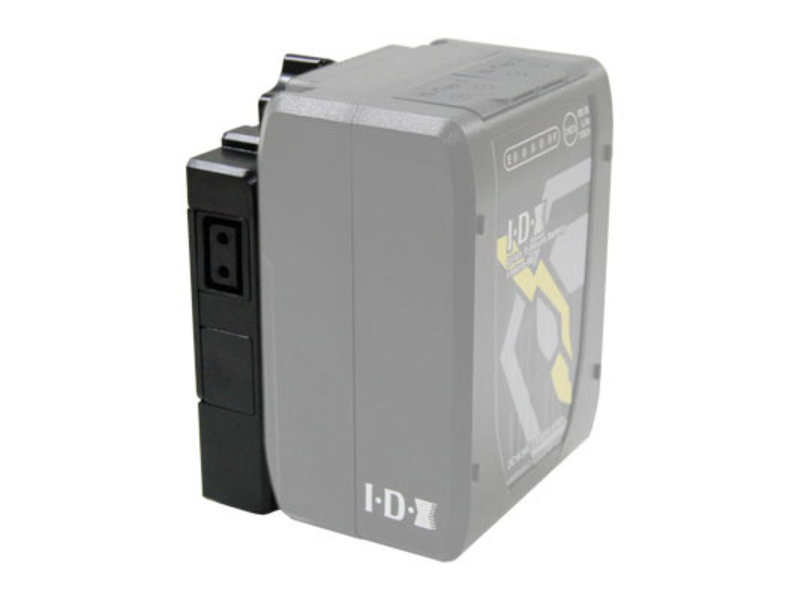

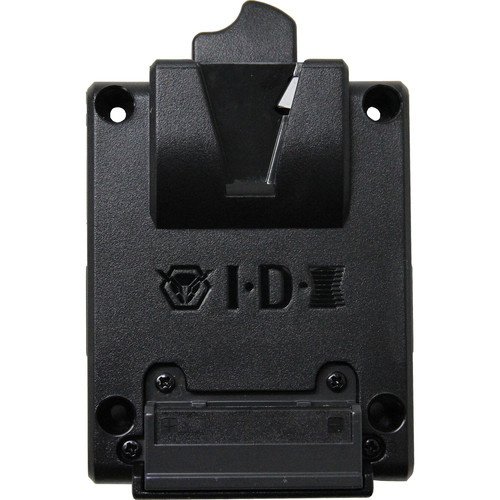

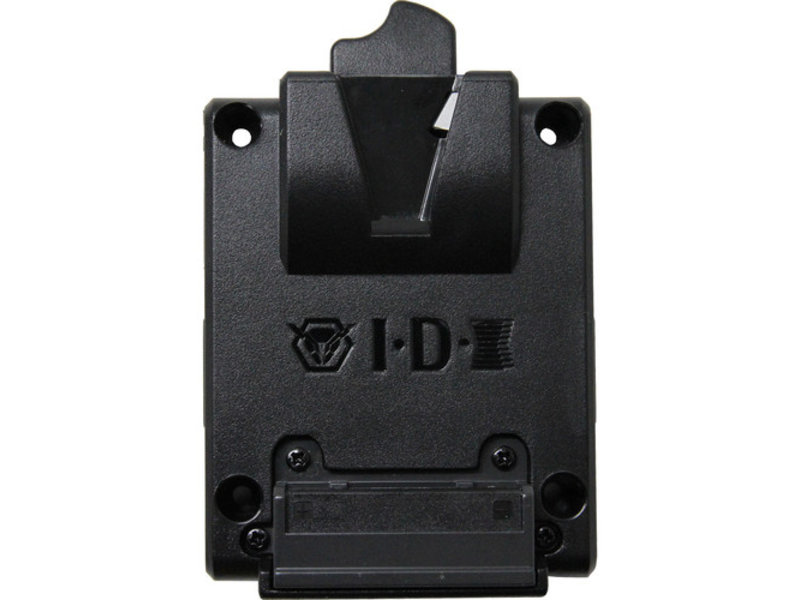

The P-Vmicro is a compact battery plate for V-Mount and Vmicro batteries. The battery plate is exactly adapted to the form factor of the Imicro batteries from IDX and is therefore particularly suitable for them. It has two unregulated D-Tap outputs (max. 80 W) and a USB-C output (5 V, max. 2.3 A) for operating equipment. The battery plate can be attached to the Cheeseplate A-CPmicro from IDX.

Compatible with V-mount batteries

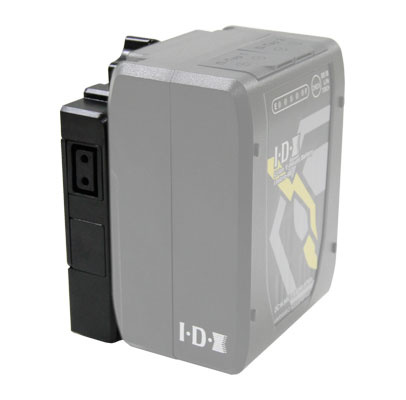

Specially designed for the form factor of the Imicro batteries from IDX

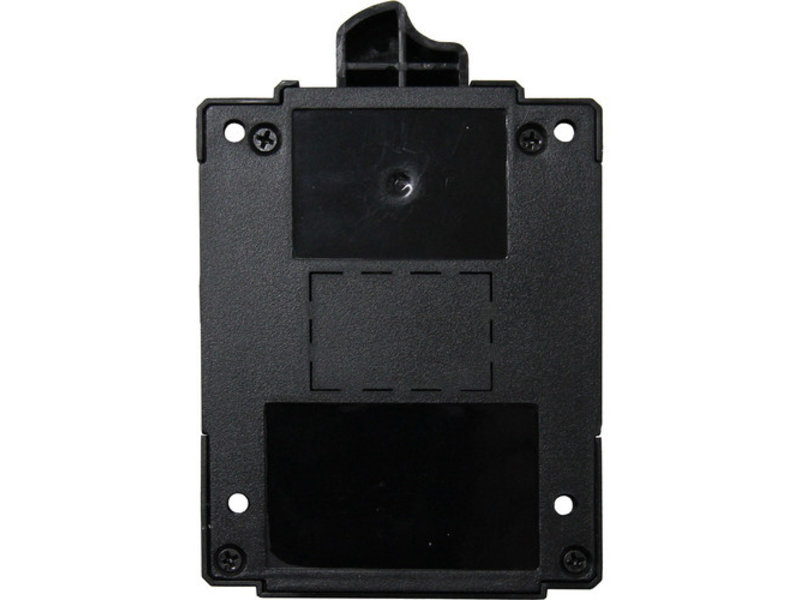

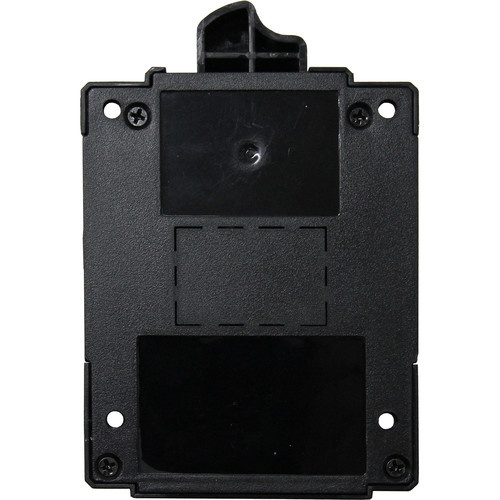

Can be attached to the Cheeseplate A-CPmicro from IDX

Technical specifications:

Maximum input current: 14 A.

Connections:

input

1x power supply DC via Vmicro (V-Mount compatible)

output

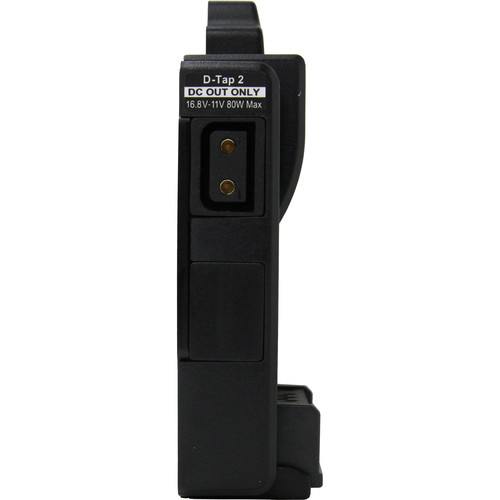

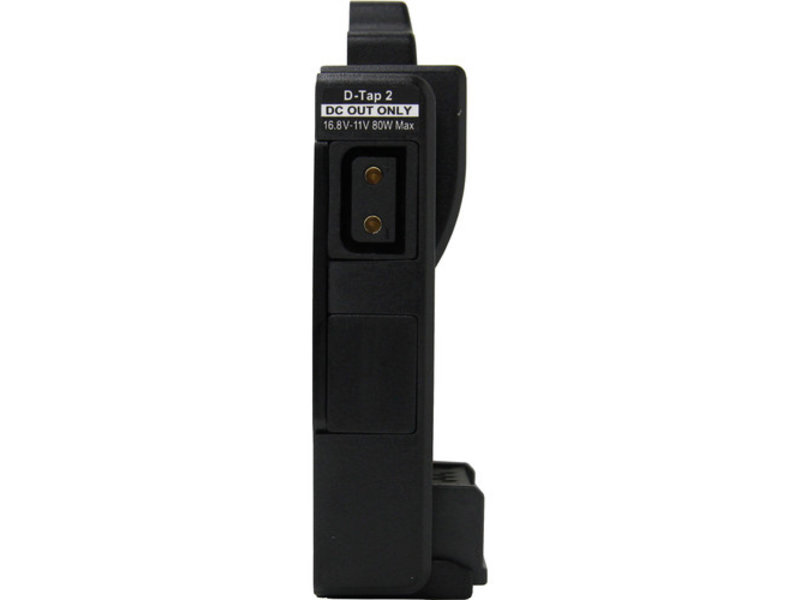

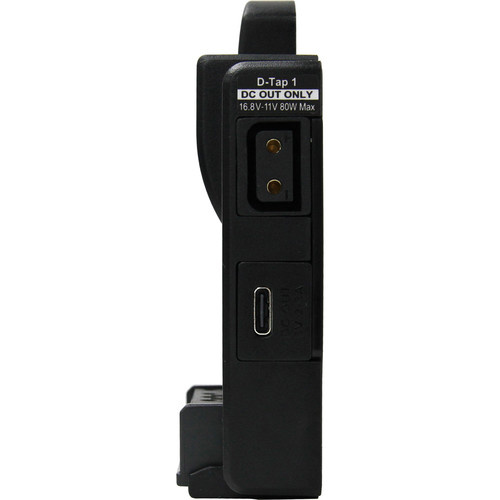

2x DC power supply via 2-pin D-Tap (unregulated, max. 80 W)
1x power supply DC via USB-C (5 V, max. 2.3 A)

General product information:

Dimensions (W x H x D): 66 x 96 x 28 mm (2.6 x 3.78 x 1.1 in)
Weight: approx. 110 g (3.88 oz)
Operating temperature: -20 ° to + 45 ° C (-4 ° to + 113 ° F)

Included supply:

4x M3 x 10 double SEMS screw

Product Description

The Imicro-98 is the smallest battery pack in the world at this capacity. Rated at 97 Wh, the Imicro-98 meets the passenger aircraft carry-on limit while remaining useful in many diverse applications. The Imicro’s size is beneficial for users with small equipment and gimbal set ups. The Imicro-98 also includes two on-battery D-Tap outputs. Future accessories will make the Imicro Series your new go-to setup.

Product features

97Wh capacity
Meets passenger aircraft travel regulations
Capable of handling up to 14A loads
(1) 100W D-Tap Advanced Output (unregulated) - D-Tap Output with the added ability to charge battery using low-cost D-Tap Charger (VL-DT1)
(1) 100W D-Tap output (unregulated)
5 power indicator LEDs (displaying 10% increments)
Battery circuit protection ensures the Imicro-98 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures
The highest grade lithium ion cells are used to ensure the Imicro-98 is one of the most reliable batteries on the market
11V auto cut-off prevents over-discharging (while load is applied)
Fully compatible with all ENDURA V-Mount Battery chargers and accessories.
Environmentally friendly and recyclable
