eMotimo Spectrum ST4 Pro Pan/Tilt Head with Portable Dana Dolly Kit (V-Mount)

Key Features

• 4-Axis Pan/Tilt Head with 1 x FIZ Motor
• Dana Dolly Kit with 100mm Bowl Base
• Motorized Dana Dolly Integration Kit
• V-Mount Battery Plate, Carry Cases

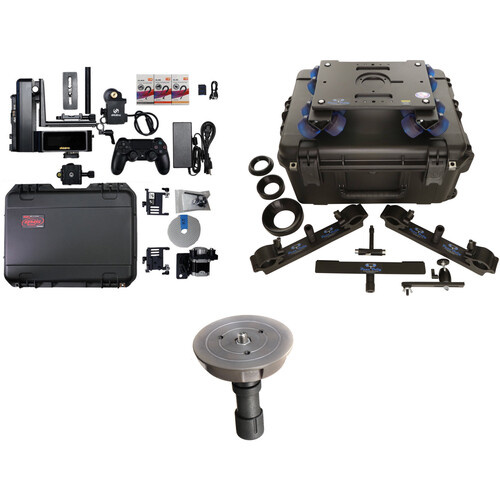

Create automated camera moves with ease with this eMotimo Spectrum ST4 Pro Pan/Tilt Head with Portable Dana Dolly Kit. The kit includes the eMotimo Spectrum ST4 Pro Bundle with Dana Dolly integration and V-mount battery plate, Dana Dolly Portable Dolly System with universal track ends, and the Manfrotto 500BALLSH 100mm half ball with short locking handle.

The ST4 bundle features a 4-axis pan/tilt head with a V-mount battery plate and a FIZ control motor. It supports a camera rig that weighs up to 15 lb, features wireless Bluetooth control, and can store 11 preset moves. The Dana Dolly integration kit allows you to control the included Dana Dolly using a motor pod, cable, and slider belt. The Dolly itself allows you to perform smooth dolly moves using 16 track wheels, and it includes two universal track ends, a center support, bowl adapters, and mounting hardware. The Manfrotto 100mm half ball is compatible with the 100mm bowl adapter and allows you to mount and adjust a fluid head or other camera rig mount.

Note:

External motor ports do not have native stop points. This means that slide and focus can be driven to the limit of a mechanical stop and damage the equipment.

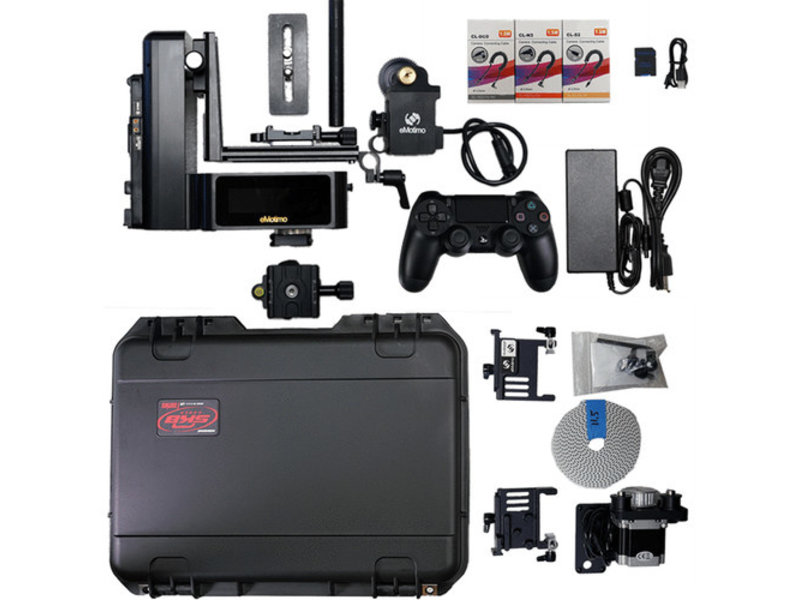

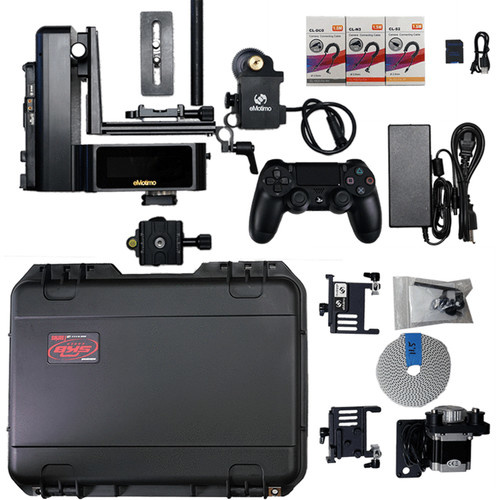

eMotimo Spectrum ST4 + Fz Pro Bundle (V-Mount)

The Spectrum ST4 + Fz Pro Bundle with V-mount battery plate from eMotimo adds FIZ control to the ST4 Motion Control Pan & Tilt Head. This robust aluminum head supports a maximum equipment load of 15 lb and includes a 3.9" forward/back adjustment plate for proper camera balance. Head features include smooth ramping, the ability to set up to seven keyframes, and 11 preset moves ranging from a quiet interview to turbo mode. This motion control head features accurate move repetition, even at high speeds.

This four-axis head has built-in pan and tilt control, plus one motor for focus, iris, or zoom control plus a second port for connecting an additional FIZ motor or slider control. Use the included wireless Bluetooth remote for controlling the head or set up a slow, continuous move for robotic B-camera coverage of an interview or other event. The Spectrum ST4 head can also be programmed for time-lapse moves when used with a separately available shutter cable.

The Spectrum ST4 + Fz Pro Bundle also includes a 24V high-capacity AC adapter, three DSLR shutter cables, and a hard SKB carrying case.

Note:

External motor ports do not have native stop points. This means that slide and focus can be driven to the limit of a mechanical stop and damage the equipment.

4-Axis Motion Control Head

Built-in pan and tilt control

FIZ Motor

One FIZ motor plus a second motor port for an additional FIZ (focus/iris/zoom) motor and/or slider control

Versatile Control

11 preset moves and a wireless Bluetooth remote provide automated or precision control

Precise Moves

120°/s pan and 60°/s tilt maximum; repeats moves accurately, even at high speeds

Precision Balancing

Includes a 3.9" forward/back adjustment plate for optimal camera balance

Power Options

Use the included 24 VAC power supply or a V-mount battery to power the head

eMotimo Dana Dolly Integration Kit

The Dana Dolly Integration Kit from eMotimo enables you to add the separately available Spectrum ST4 Motion Control Pan & Tilt Head to your existing Dana Dolly system. This kit includes a Motor Pod, a 21" Spectrum cable, an 11.5' slider belt, and two belt clamps/tensioners.

Features

Connects the separately available Spectrum ST4 pan and tilt head to your existing Dana Dolly system

Includes a slider motor pod with Spectrum cable, a slider belt, and two belt clamps/tensioners

Dana Dolly Portable Dolly System Rental Kit with Universal Track Ends

The Dana Dolly Portable Dolly System Rental Kit with universal track ends is a heavy duty camera dolly platform that rides on 16 custom modified soft polyurethane wheels that resist flat spotting and use ABEC-7 rated precision bearings providing you with extremely smooth dolly shots. This kit is complete with 75, 100, and 150mm bowl adapters, and comes in a custom flight case. The wheel trucks swivel, allowing the dolly to ride on available straight or curved track, which you must source separately. The manufacturer recommends using standard speed rail or Schedule 80 aluminum pipe of compatible size. The dolly includes two universal track ends, which accept inch and a quarter pipe (standard speed rail) up to 1.9" O.D., and fit into available standard Junior stand receivers or 5/8" Baby pins. A center support is included for long track runs or when using heavy cameras.

The dolly platform is machined from aluminum and features a standard Mitchell mount including a 2.75" center hole with a machined key way. The platform incorporates one 3/8" through hole, one 1/4"-20 threaded hole, and one 3/8"-16 threaded hole on each side of the dolly platform for a total of 6 accessory mounting holes. The rental kit includes a monitor mount with a ball head adapter. The Dana dolly is designed and manufactured in the USA.

Custom Machined Track Wheels

The key to the Dana dolly's smooth ride are the 16 custom machined track wheels.

• The wheels are custom made soft, then turned down to be round within 1/1000 of an inch to eliminate the "bounce" that normal skateboard wheels suffer from.
• You can park the dolly with 100 pounds of camera and accessories on the track at 100° F for an hour without the wheels flat spotting.
• Another benefit from the machining the wheels is reduced squeak during use.
• The wheels are custom modified 16 at a time on a special machine, providing uniformity.

Wheel Trucks

• The wheel trucks can swivel on the dolly, which allows it to ride on straight and round track.
• A felt washer separates the dolly platform from the wheel trucks, helping to reduce noise.
• The included T-Tool features a 1/2, 9/16, and 3/8" ends.
• It allows you to tighten the wheel trucks using the 9/16th end to suit your taste.

Mitchell Mount

The Mitchell mount features an elongated key way, allowing you to use non standard adapters.

Track Supports

Track supports fit into available standard Junior stand receivers or 5/8" Baby pin, although Dana Dolly recommends the use of available beefy baby stands at a minimum and to avoid thin walled aluminum stands

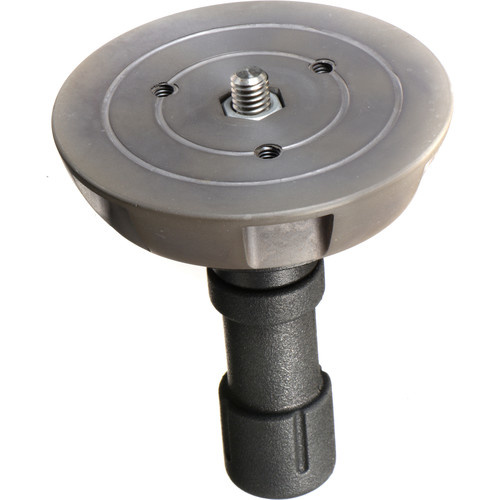

Manfrotto 500BALLSH 100mm Half-Ball with Short Locking Handle

The Manfrotto 500BALLSH comes complete with a short locking handle to mount all Manfrotto flat-base heads to the 529B Hi-Hat.

In the Box

eMotimo Spectrum ST4 Pro Bundle + Dana Dolly Integration (V-Mount) - ST417_VM_LC_DDINT -

. Spectrum ST4 + Fz Pro Bundle (V-Mount)

. Dana Dolly Integration Kit

. Limited 90-Day Manufacturer Warranty (Third-Party Components)

Dana Dolly Portable Dolly System Rental Kit with Universal Track Ends ( DDURK1 )

. 2 x Universal Track Ends

. Center Support

. 75mm Bowl Adapter

. 100mm Bowl Adapter

. 150mm Bowl Adapter

. 3“ Washer

. T-Tool

. Monitor Mount

. Flight Case

. Limited 1-Year Manufacturer Warranty

Manfrotto 500BALLSH 100mm Half-Ball with Short Locking Handle
